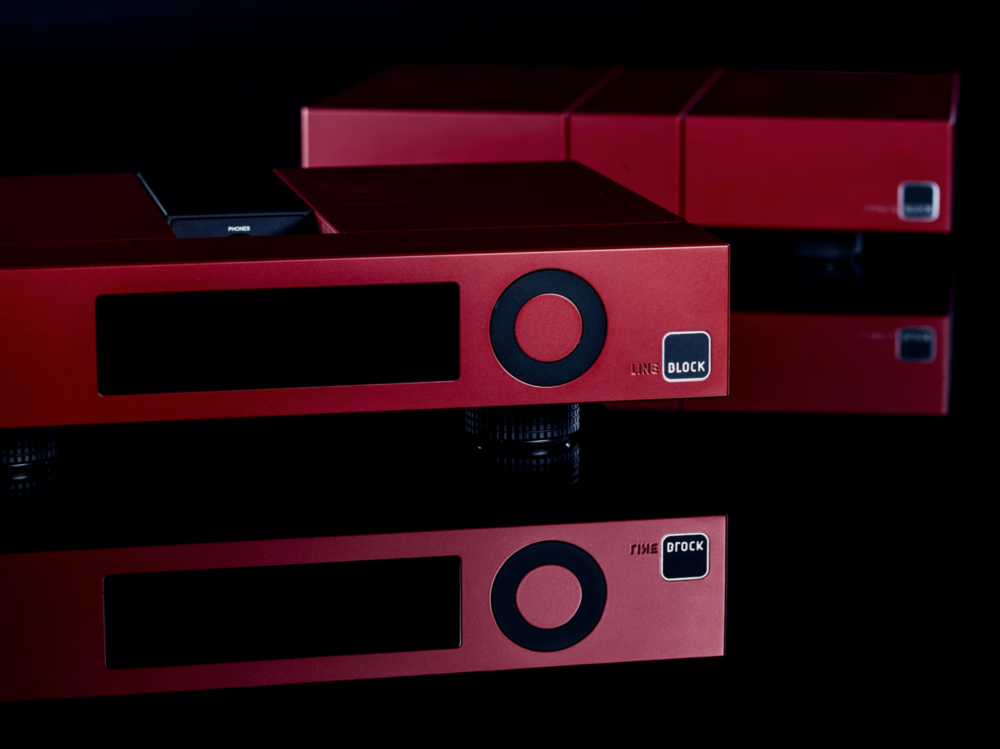

LINE & POWER BLOCK
Dual-Mono Control Amplifier

Features

Specifications

Distortion: THD+N <0.0005 %
IMD <0.0007 % at 5 Vrms out
Frequency Response: DC - 200 kHz -0.5 dB
DC - 20 kHz -0.01 dB
Signal / Noise Ratio: >130 dB A-weighted
>128 dB unweighted
related to full output
Channel Separation: Infinite (>130 dB)
Max. Voltage Gain: +12 dB balanced
+18 dB unbalanced
Input Impedance: 40 kohms balanced
20 kohms unbalanced
Output Impedance: 50 ohms balanced
25 ohms unbalanced
Maximum Output Voltage: 18 Vrms balanced
9 Vrms unbalanced
Inputs: 4 balanced (XLR) pairs
5 unbalanced (RCA) pairs
Outputs: 2 balanced (XLR) pairs
2 unbalanced (RCA) pairs
Battery Operation Time: >15 hours
System Remote Control: Yes*, Neutrik RJ45
Power Consumption: 150 W max. at charging
50 W at idle, <0.5 W in standby
Mains Voltage: 230/115 Vac
factory pre-configured
Dimensions - Preamp: 460(w) × 105(h) × 360(d) mm
Dimensions - Power Supply: 460(w) × 105(h) × 360(d) mm
Weight in total: 25 kg, ˜30 kg shipping

*works only together with appropriate BLOCKAUDIO Power Amplifier

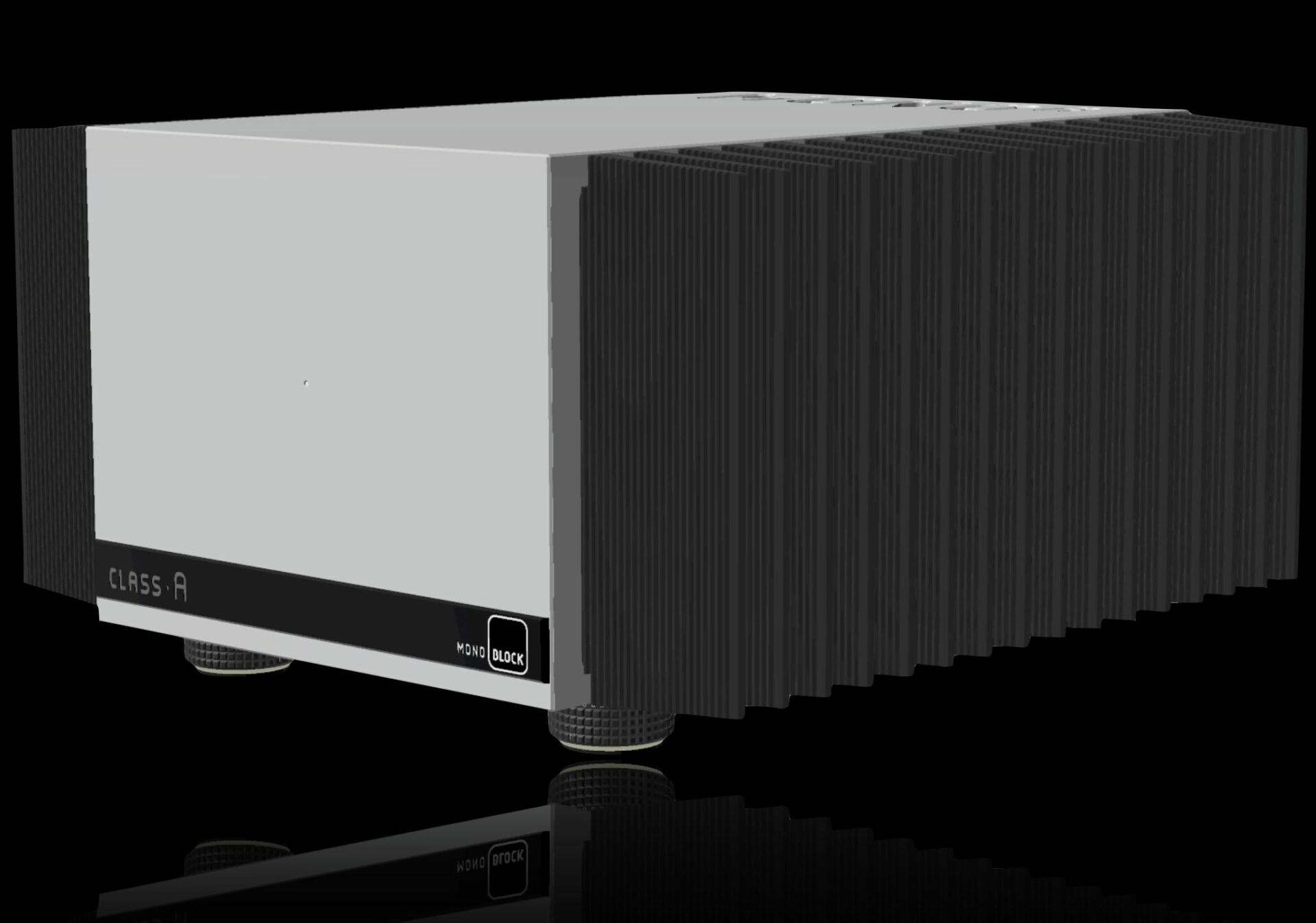

MONO BLOCK
Class-A Monaural Power Amplifier

Features

Specifications

Continuous RMS Output Power: 500 W into 4 ohms
300 W into 8 ohms, up to 150 W Class-A
Distortion: THD+N <0.015 % at rated power
min. 0.002 %, IMD <0.006 %
Frequency Response: DC - 200 kHz ±3 dB
DC - 20 kHz ±0.01 dB
Signal/Noise Ratio: 120 dB A-weighted
117 dB unweighted
related to rated power
Damping Factor: >1000 at 8 ohms
Voltage Gain: +26 dB or +20 dB selectable
Input Sensitivity: 2.25 Vrms at +26 dB gain
Input Impedance: 20 kohms balanced
10 kohms unbalanced
Inputs: 1 balanced (XLR)
1 unbalanced (RCA)
Outputs: 2 pairs binding posts
System Remote Control: Yes*, Neutrik RJ45
Power Consumption: 1200 W max.
500 W at idle
100 W at idle Eco mode
0 W in standby
Mains Voltage: 230/115 Vac
factory pre-configured
Dimensions: 500(w) × 275(h) × 600(d) mm
Weight: 95 kg, ˜115 kg shipping

*works only together with appropriate BLOCKAUDIO Preamplifier
